Disdrometer

DD IN CCRES

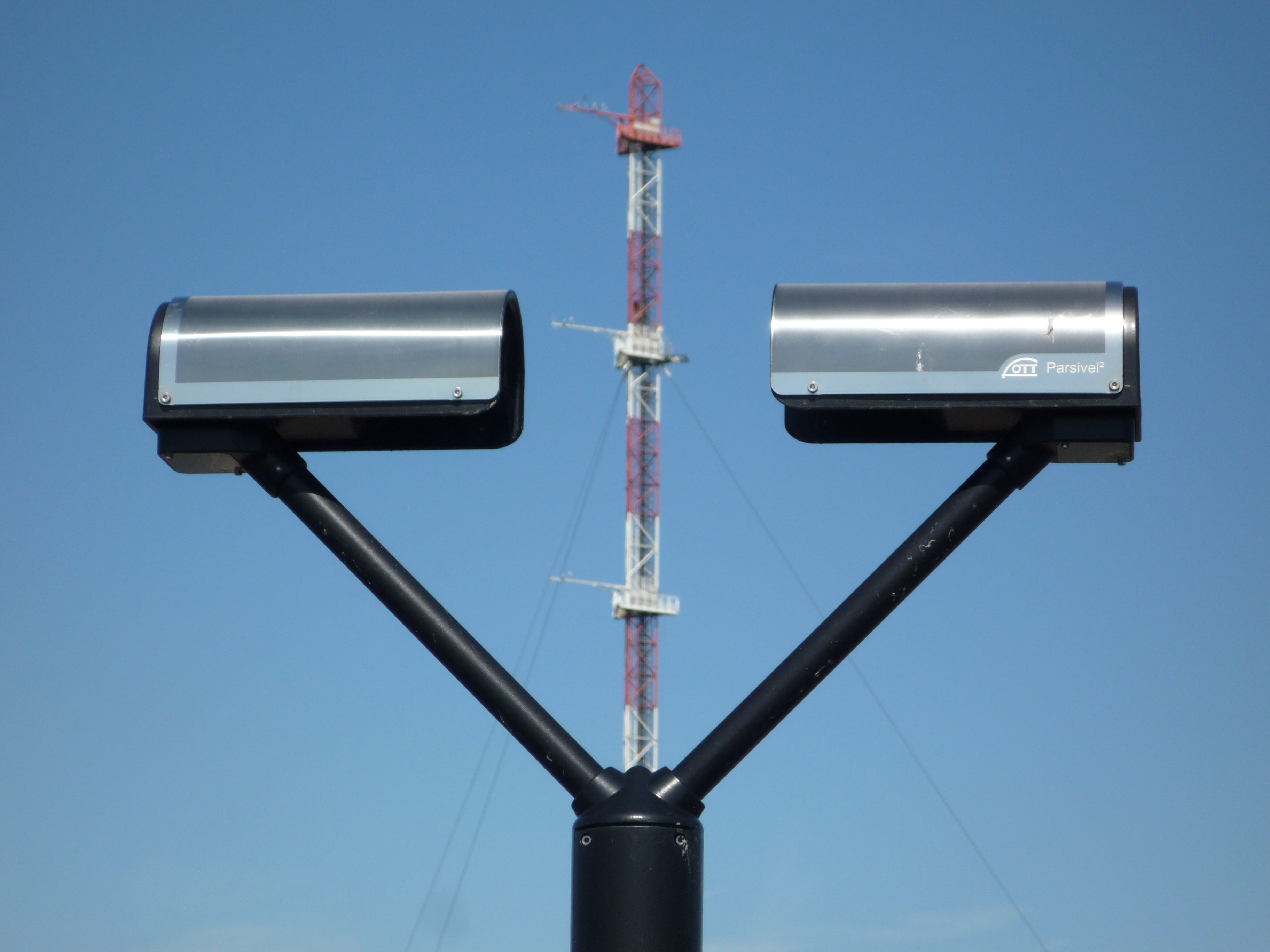

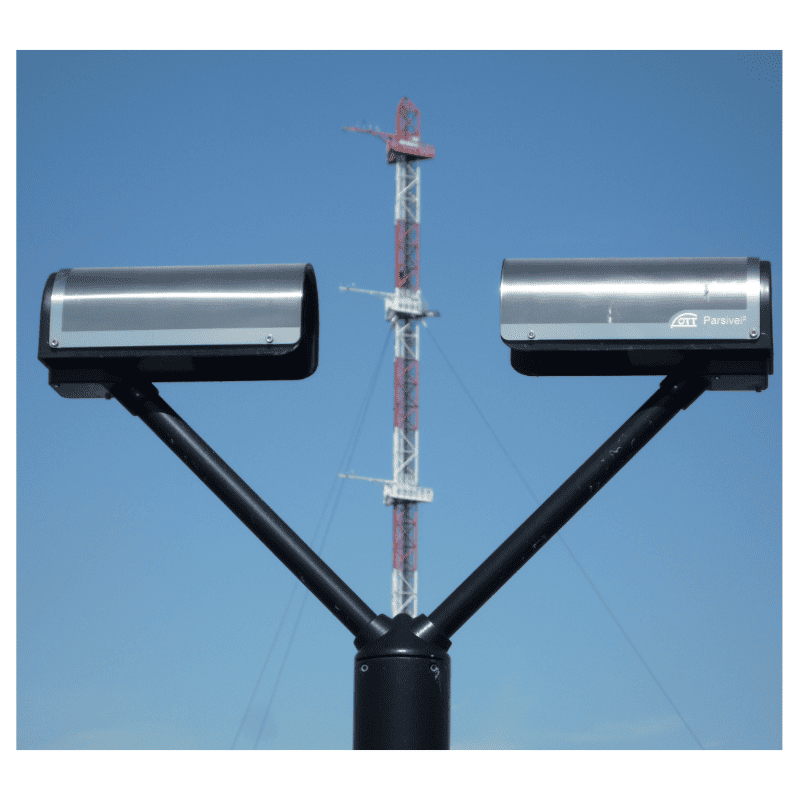

Disdrometers (DD) measure the size distribution and falling velocity of precipitation at the surface. The measured drop size distribution is then used to derive other moments of the size distribution, such as reflectivity. For warm precipitation (rainfall), the radar reflectivity for any radar frequency can be derived reliably, using the appropriate dielectric factor and Mie scattering calculations for the specific radar frequency. The derived radar reflectivity during rain periods is then used to track the calibration of the cloud radar through comparison with the cloud radar reflectivity measured at the lowest reliable altitude range that the radar provides.



DD procedures and methods

TITLE
VERSION
LINK TO DOCUMENT
RELATED PRESENTATION
RELATED PUBLICATION
pyAtmosLogger : Python code to record DD data on the PC (Linux or Windows)2024https://github.com/ACTRIS-CCRES/pyAtmosLogger
pyAtmosLogger software for logging
OTT Parsivel2 disdrometer data
2024DD Software configuration : OTT Parsivel2
pyAtmosLogger software for logging
THIES LPM disdrometer data
2024DD Software configuration : Thies LPM
DD Software configuration: OTT Parsivel 22022Software configuration
DD Standard Operating Procedures (SOPs)2021Standard Operating Procedures
